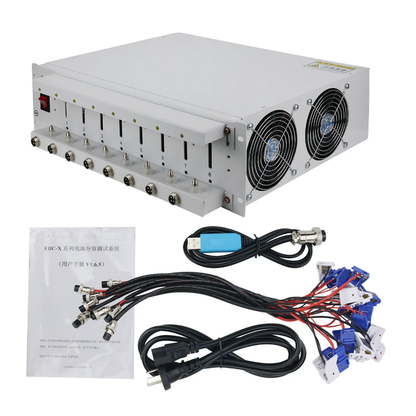

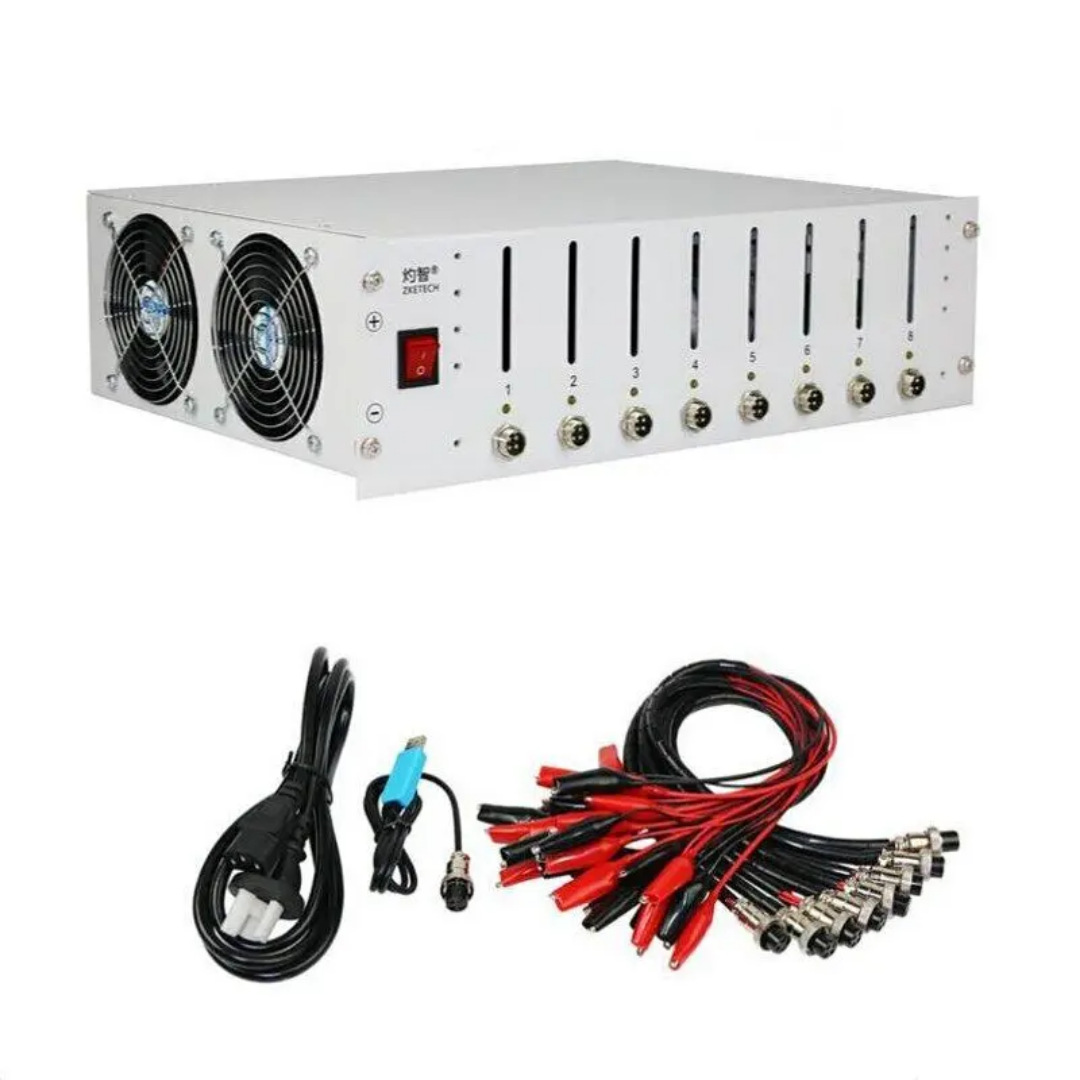

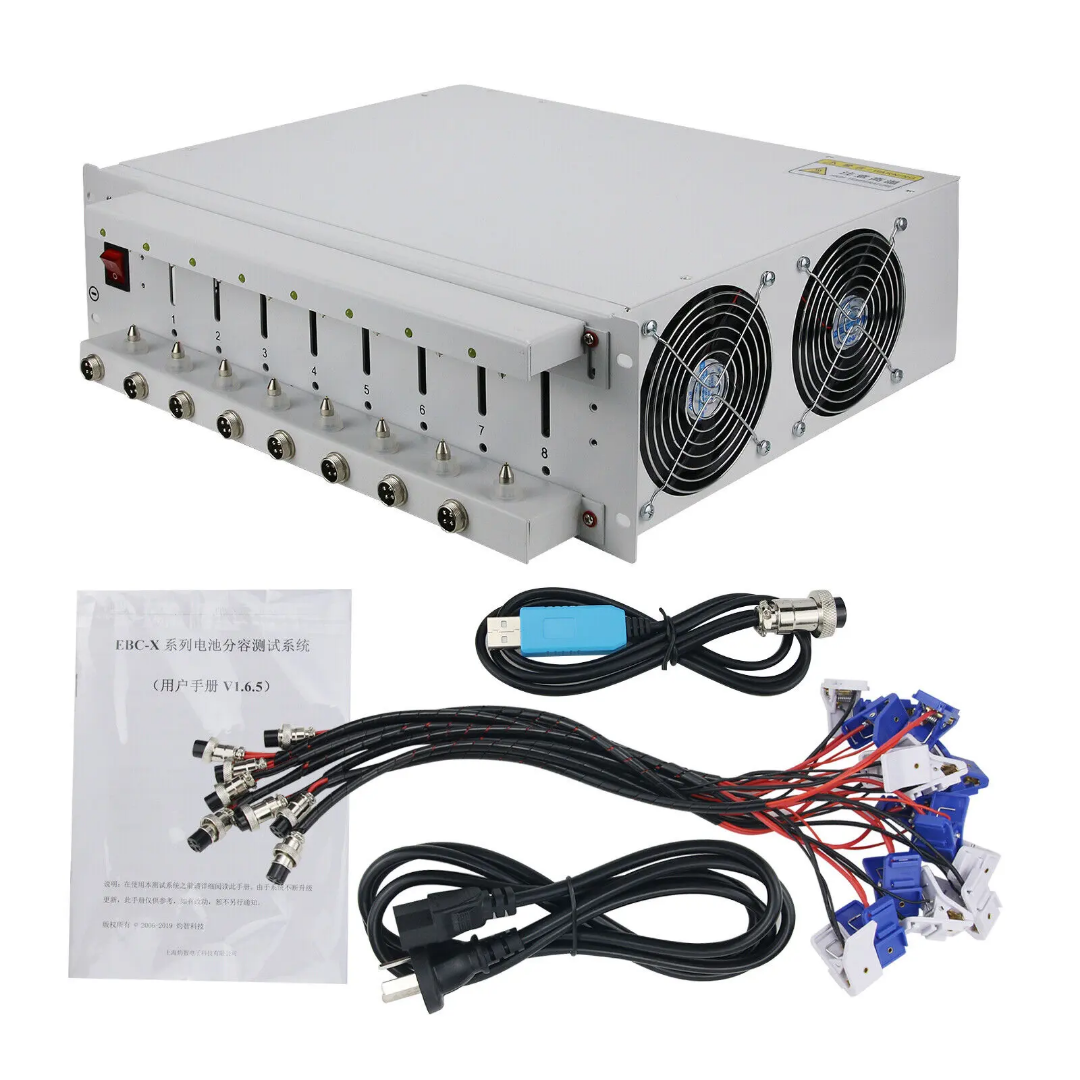

Zketech 5V1A 2A 3A 6A 8 Channel Cylindrical Cell 18650 Battery Analyser Battery Capacity Tester Battery Testing Machine EBC-X

Product Description: Note: The tester channels share a common ground and cannot be used to test series battery packs.

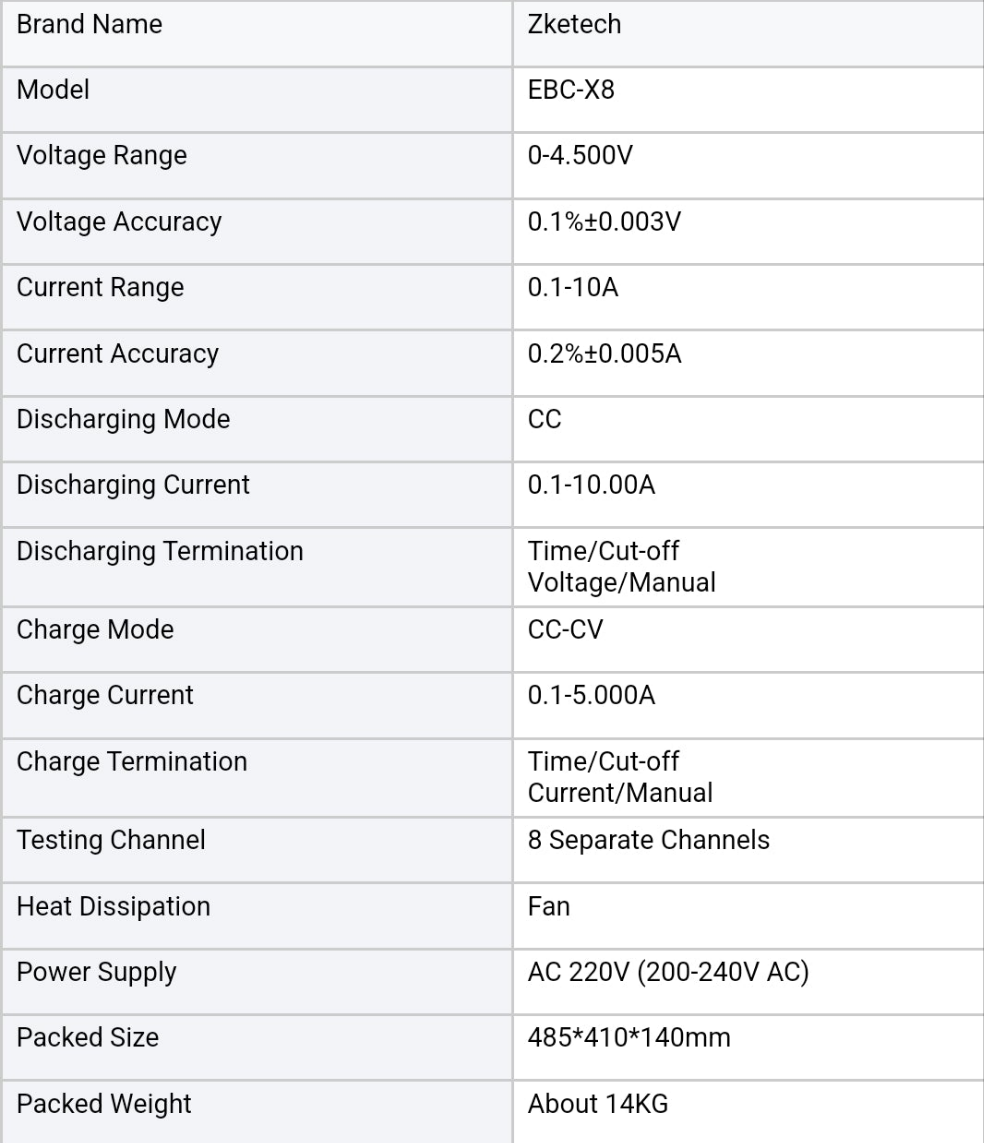

Specifications: Model: EBC-X

⁃Voltage Range: 0-4.500V

⁃Voltage Accuracy: 0.1%t0.003V

⁃ Current Range: 0.1-10A

⁃ Current Accuracy: 0.2%t0.005A

⁃ Discharging Mode: CC ⁃ Discharging Current: 0.1-10.00A

⁃ Discharging Termination: Time/Cut-off Voltage/Manual ⁃ Charge Mode: CC-CV

⁃ Charge Current: 0.1-5.000A

⁃ Charge Termination: Time/Cut-off Current/Manual

⁃ Testing Channel: 8 Separate Channels

⁃ Heat Dissipation: Fan

⁃ Power Supply: AC 220V (200-240V AC)

⁃ Packed Size: 485*410*140mm

⁃ Packed Weight: About 14KG
